MetadataHub With Wasabi

GRAU Data’s MetadataHub is a platform and service that enables organizations to extract richer understanding from the metadata embedded in their unstructured documents, images, and other data sources. Acting as a unified hub, it consolidates, enhances, and adds context to metadata spanning an organization's entire data landscape, eliminating data silos through capabilities such as data cataloging, lineage tracking, and data quality monitoring, so that unstructured files and data assets become easily searchable and primed for AI use.

The use of this application may result in significant data egress depending upon the type of additional optional extractors used to analyze the objects in a given bucket. For example, the MD5 extractor will need to egress the entire object in order to compute the MD5 sum of the object. Be sure to reach out to MetadataHub support, prior to running your metadata analysis, to confirm how it may impact your data egress from Wasabi.

Requirements

• A Wasabi Hot Cloud Storage Account

  • A Wasabi Bucket (see Creating a Bucket)

  • Access & secret key pair

    Be sure to note your bucket name, storage region URL, and Access & Secret Key, as you will need these for later steps.

  • Access to the MetadataHub Registry

  • A valid MetadataHub License

  • Docker (Compose) & s3fs installed

  Configuring MetadataHub With Wasabi

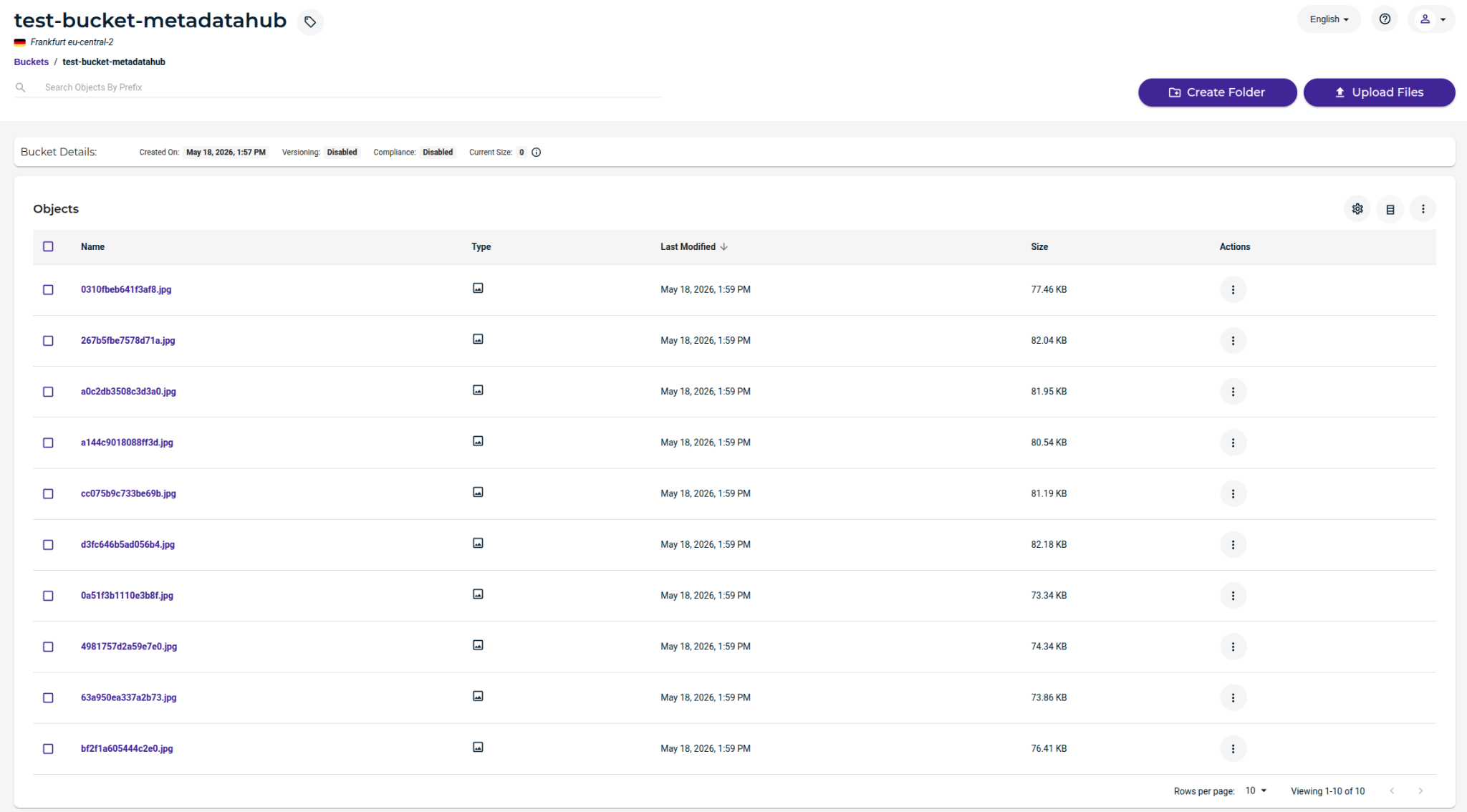

  The example below uses a test bucket containing 10 image files.



  1. Create a new directory with the following structure.

     • .credentials —Stores the S3 access/secret key

     • .env —Stores configuration values for the Compose file

     • compose.yml —Defines the MetadataHub services

     • data/test-bucket-metadatahub —Mount point for the Wasabi bucket

  2. Mount the S3 test bucket using s3fs so MetadataHub Core can access the files.

     This configuration example discusses the use of Wasabi's eu-central-2 storage region. Use the region your bucket is located in. For a list of regions, see Service URLs for Wasabi's Storage Regions(opens in new tab).

     s3fs \
         test-bucket-metadatahub \
         ./data/test-bucket-metadatahub/ \
         -o subtype=s3 \
         -o use_path_request_style \
         -o ro \
         -o fsname=https://s3.eu-central-2.wasabisys.com/test-bucket-metadatahub \
         -o endpoint=s3.eu-central-2.wasabisys.com \
         -o url=https://s3.eu-central-2.wasabisys.com \
         -o passwd_file=./credentials \
         -o allow_other \
         -o umask=0022 \
         -o noexec

  3. Configure compose.yml with a minimal MetadataHub setup. This includes one Core, one Hub, and a Postgres database. Fill in the required values in .env and start the services.

     services:
       mdh-wasabi-core:
         image: registry.metadatahub.de/main/core:3.8
         container_name: mdh-wasabi-core
         depends_on:
           mdh-wasabi-db:
             condition: service_healthy
         environment:
           MDH_CONFIG_DATABASE_HOST: mdh-wasabi-db
           MDH_CONFIG_DATABASE_PASSWORD: ${MDH_CONFIG_DATABASE_PASSWORD}
           MDH_CONFIG_CREDENTIAL_USER: ${MDH_CONFIG_CREDENTIAL_USER}
           MDH_CONFIG_CREDENTIAL_ADMIN: ${MDH_CONFIG_CREDENTIAL_ADMIN}
           MDH_CONFIG_SERVER_APP_SSL: false
           MDH_CONFIG_SERVER_APP_SSL_VERIFY: NO_VERIFY
           MDH_CONFIG_HARVESTER_SHARE_O_NAME: test-bucket-metadatahub
           MDH_CONFIG_HARVESTER_SHARE_O_HOST: /home/mdh/wasabi/data/test-bucket-metadatahub
           MDH_CONFIG_INSTANCE_NAME: mdh-wasabi-core
           MDH_CONFIG_DATABASE_NAME: wasabi-core
         volumes:
           - ./data/test-bucket-metadatahub:/var/opt/mdh-core/harvester/filesystem/test-bucket-metadatahub:ro

       mdh-wasabi-hub:
         image: registry.metadatahub.de/main/hub:3.8
         container_name: mdh-wasabi-hub
         environment:
           HUB_TIMEZONE: Europe/Berlin
           HUB_ADMIN_NAME: ${HUB_ADMIN_NAME}
           HUB_ADMIN_FIRST_NAME: ${HUB_ADMIN_FIRST_NAME}
           HUB_ADMIN_LAST_NAME: ${HUB_ADMIN_LAST_NAME}
           HUB_ADMIN_EMAIL: ${HUB_ADMIN_EMAIL}
           HUB_ADMIN_PASSWORD: ${HUB_ADMIN_PASSWORD}
           HUB_SSL: false
           HUB_SSL_VERIFY: NO_VERIFY
           HUB_HTTP_COOKIE_SECURE: false
         volumes:
           - mdh-wasabi-hub-db:/app/database
         ports:
           - 127.0.0.1:9001:8000

     mdh-wasabi-db:
       image: postgres:18
       container_name: mdh-wasabi-db
       environment:
         POSTGRES_DB: postgres
         POSTGRES_USER: metadatahub
         POSTGRES_PASSWORD: ${MDH_CONFIG_DATABASE_PASSWORD}
       healthcheck:
         test: ["CMD-SHELL", "pg_isready -U metadatahub -d postgres"]
         interval: 5s
         timeout: 3s
         retries: 5
         start_period: 10s
       volumes:
         - mdh-wasabi-postgres-db:/var/lib/postgresql

     volumes:
       mdh-wasabi-hub-db:
       mdh-wasabi-postgres-db:

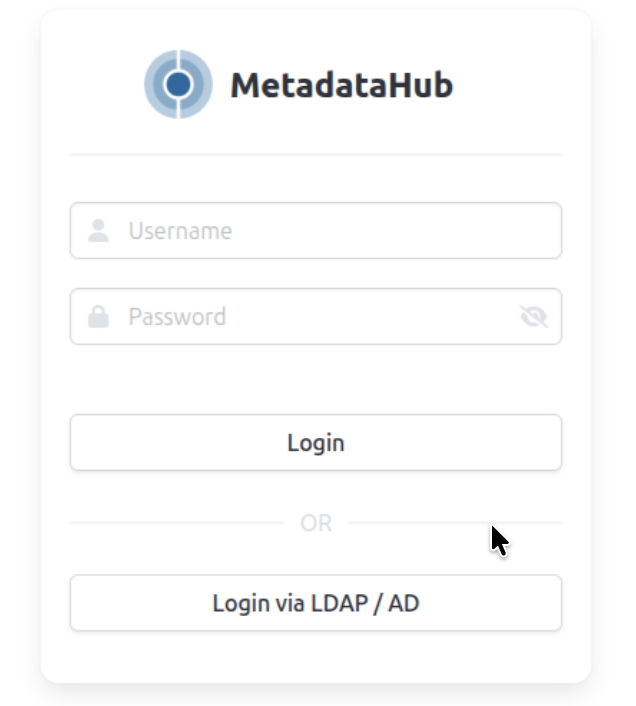

  4. Open the Hub URL in your browser and log in. Use the credentials set by HUB_ADMIN_NAME / HUB_ADMIN_PASSWORD.

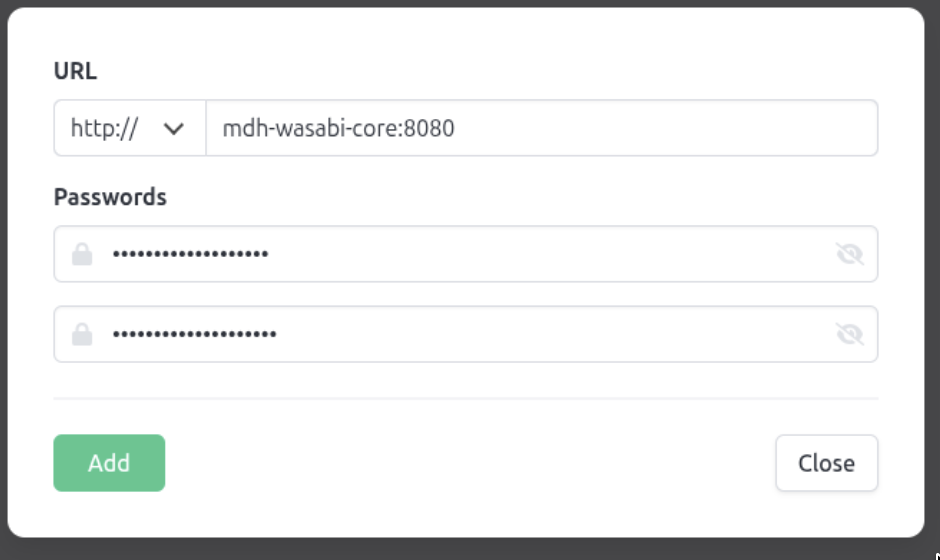

  5. To add the Core, navigate to Instances.

  6. Select Actions.

  7. Click Add.

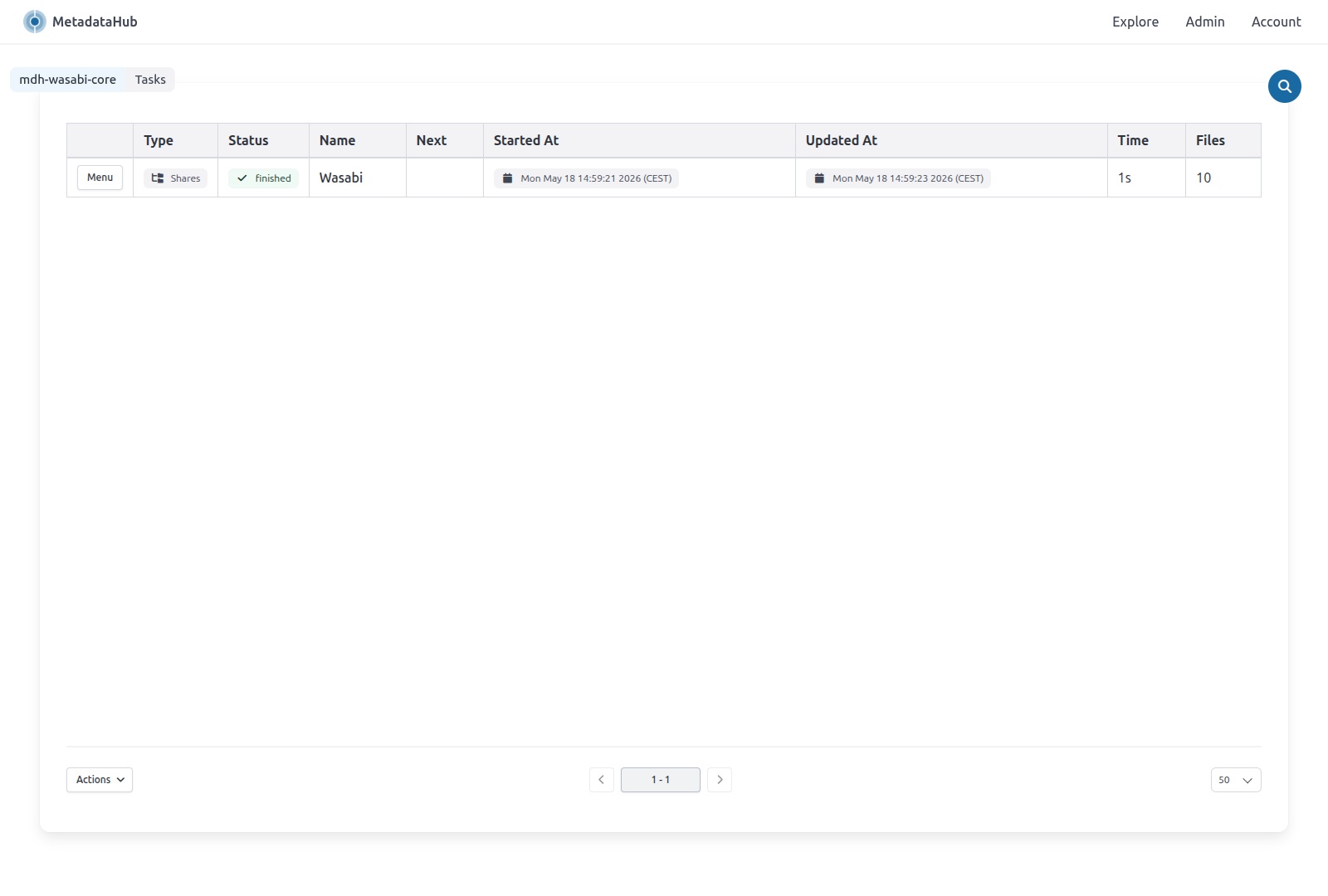

  8. To create a harvest task, click Menu.

  9. Click Harvest.

  10. Click Tasks.

  11. Click Actions.

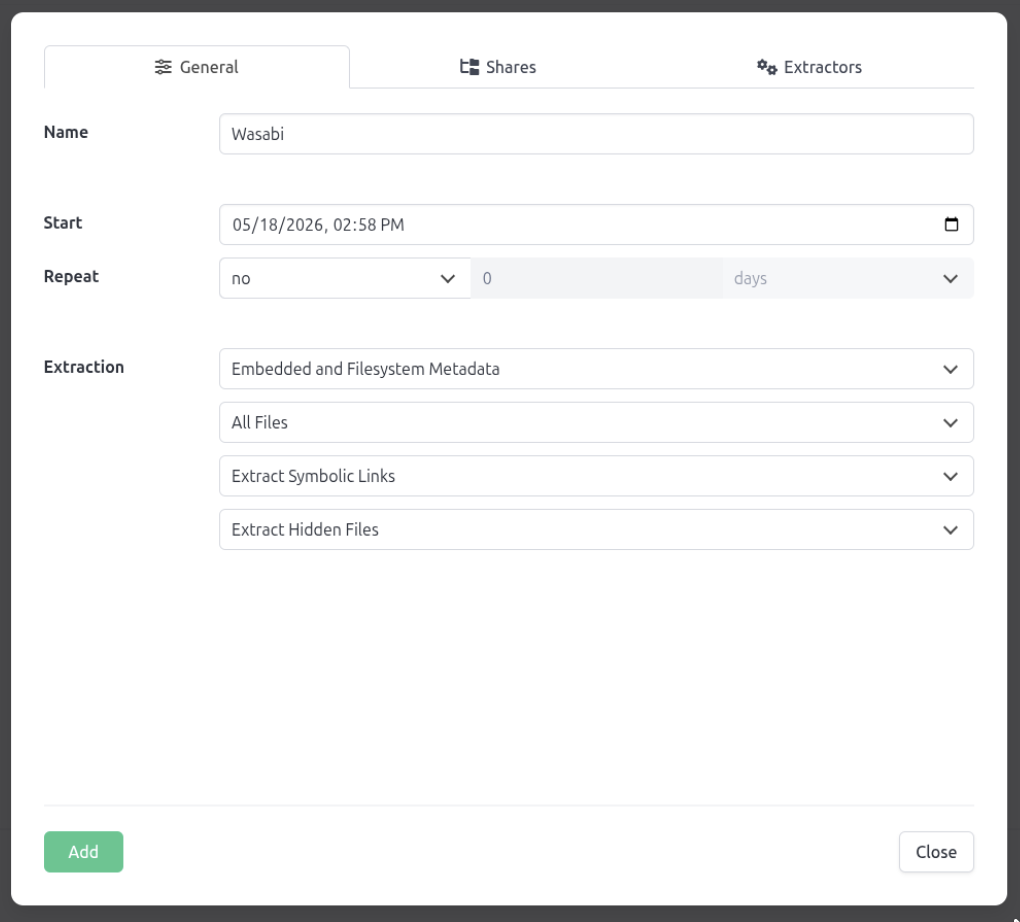

  12. Click Add Task.

  13. In the Shares panel, select the test-bucket-metadatahub share. This creates a new harvest task called Wasabi that will extract files from the bucket.







  S3 Metadata

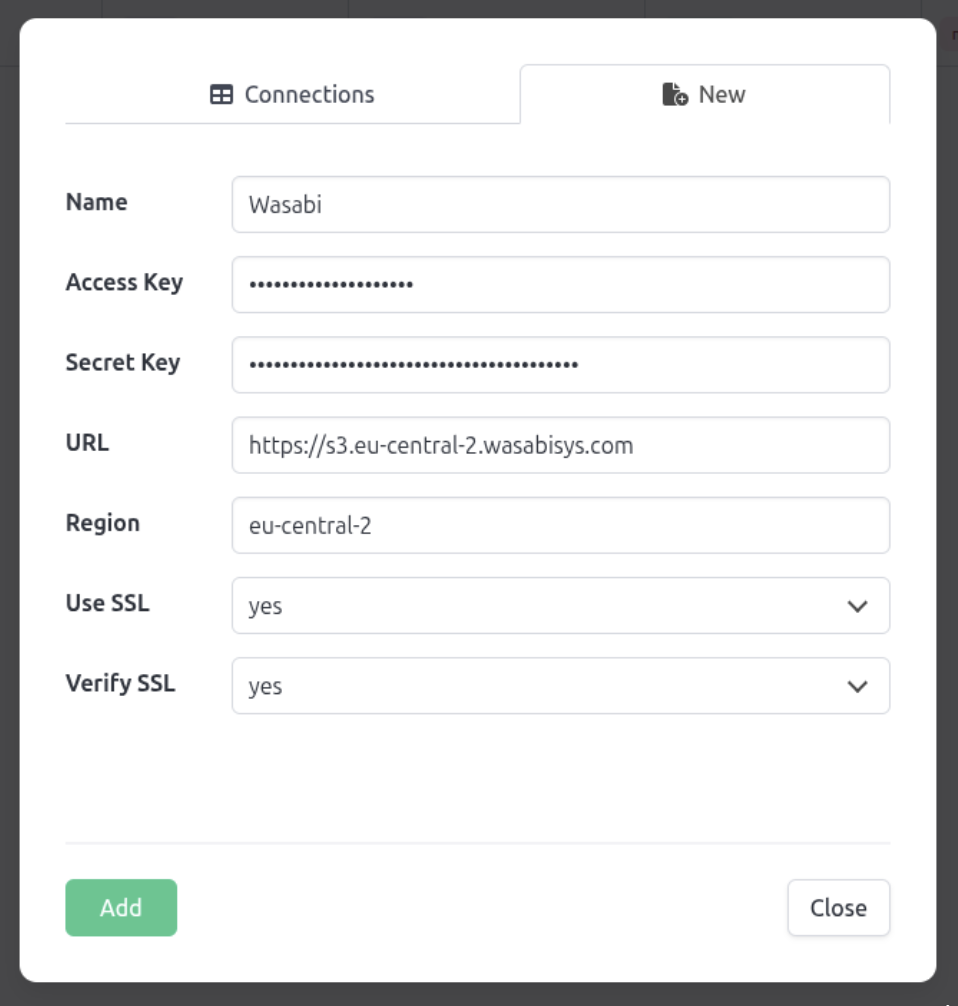

  Optionally, to extract S3-specific metadata, register the S3 extractor for Wasabi before running the harvest task. Enable it in the Extractors panel when configuring the task.
